Relay in engine compartment central electrical unit, replacement: Installation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

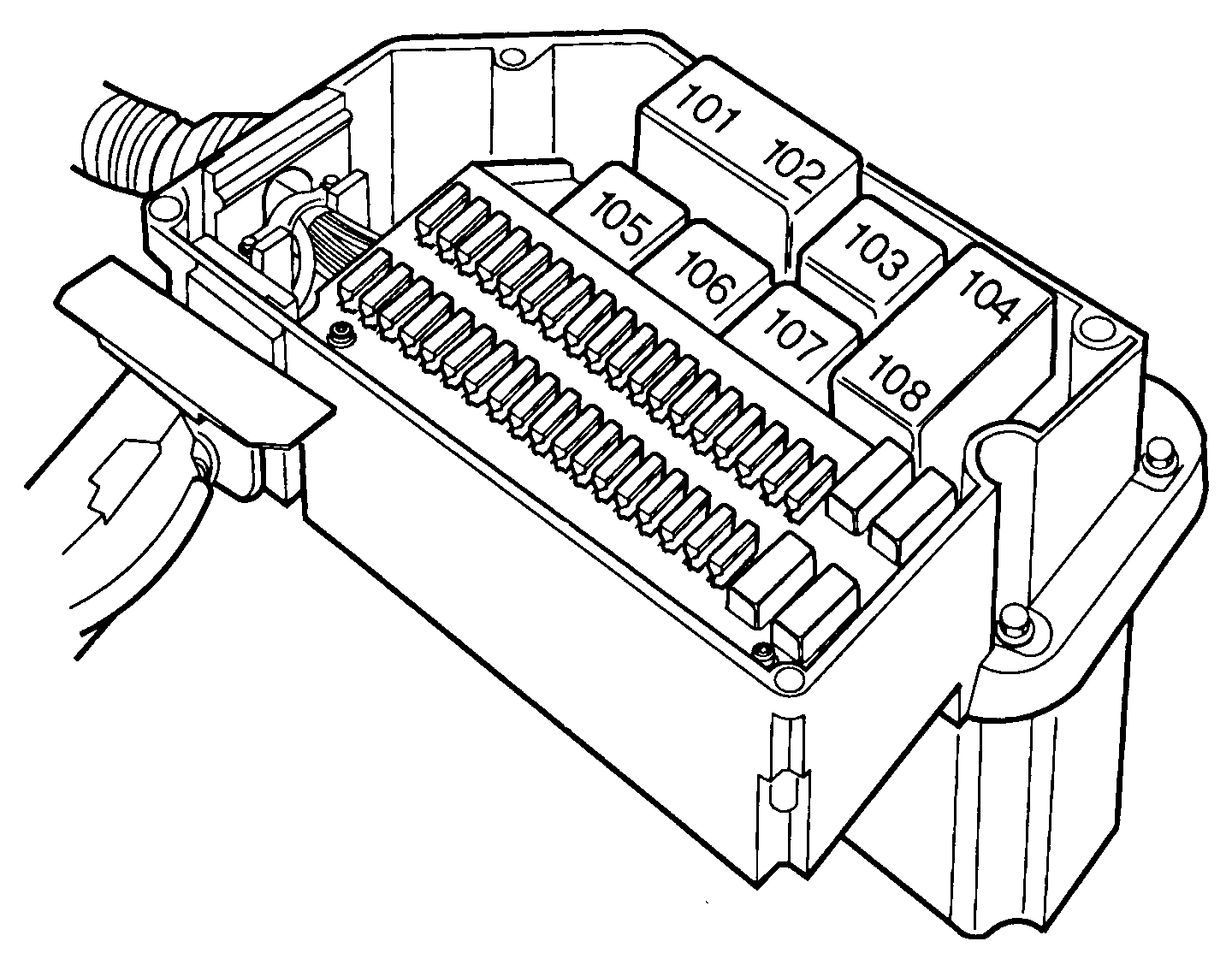

Fig 1: Identifying Fuses And Relays

Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace the relay. Position the relay as shown in the illustration.

Test relay function.

Install the cover and screws. Check that the cover has an airtight seal with the edges of the central electrical unit.

Test relay function.

Position of relays in engine compartment central electrical unit:

101/102 Cruise control
103 Fuel pump
104/108 Headlamp relay and bulb failure warning sensor
105 Overload relay X
106 Overload relay 15I
107 Spare.
