Removing the fuel pump (FP)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

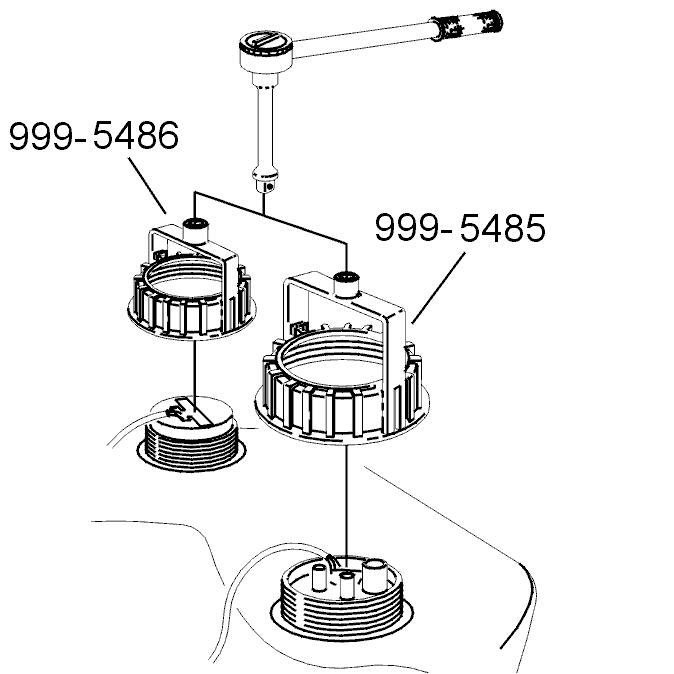

Fig 1: Identifying Wrench Special Tools 999 5486 And 999 5485 For Removing Fuel Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nuts securing:

The level sensor. Use wrench 9995486
The fuel pump (FP) unit. Use wrench 9995485 .

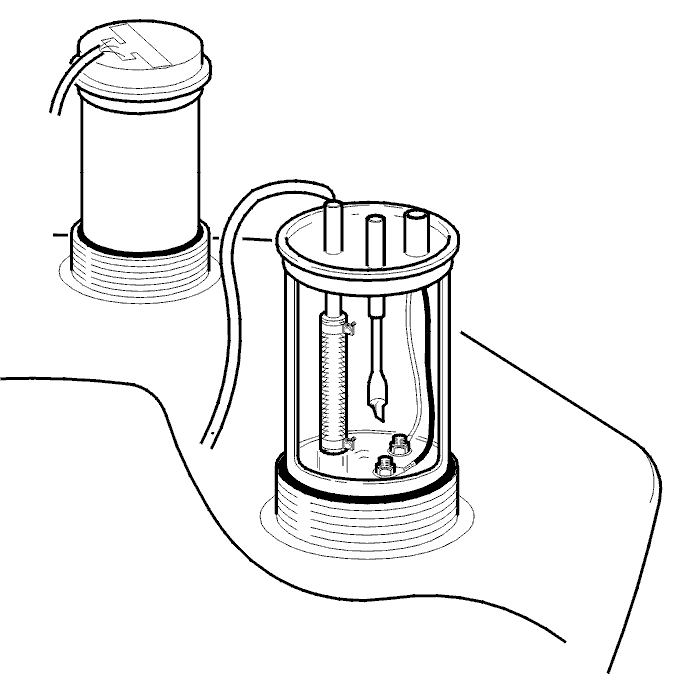

Fig 2: Identifying Fuel Pump (FP) Unit And Level Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift out the fuel pump (FP) unit and level sensor.

CAUTION:

Lift straight up. Do not grip the pipe connections with pliers or other sharp tools. Damage to connections may result in fuel leakage.

Remove the seals.
