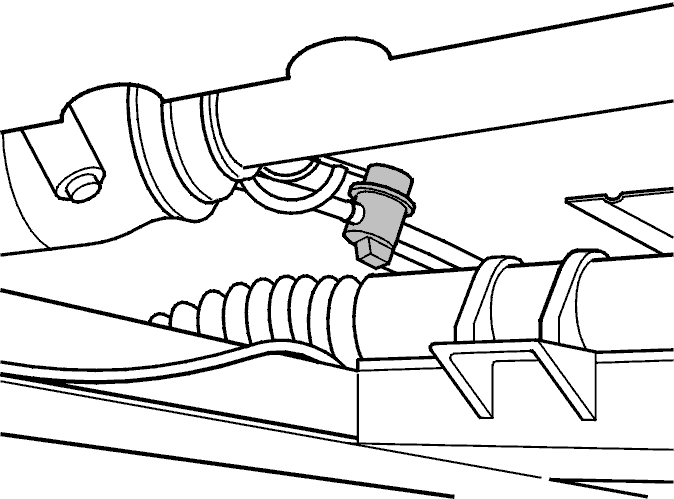

Installing pressure regulator
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Install the return line in the bracket above the fuel filter.
- Connect delivery pipe quick-release connector to fuel filter.
- Install fuel lines in holders.
- Connect delivery pipe to fuel line by engine.
- Connect reference air hose to pressure regulator.
- Locate cable fuel line rail lengthwise.
- Press fuel lines into place in fuel line rail.
- Hold fuel line rail against the floor of the car and tighten.
