Disconnecting fuel pressure gauge
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition off.
- Start draining unit.
- Turn pressure gauge cock to mid-position.

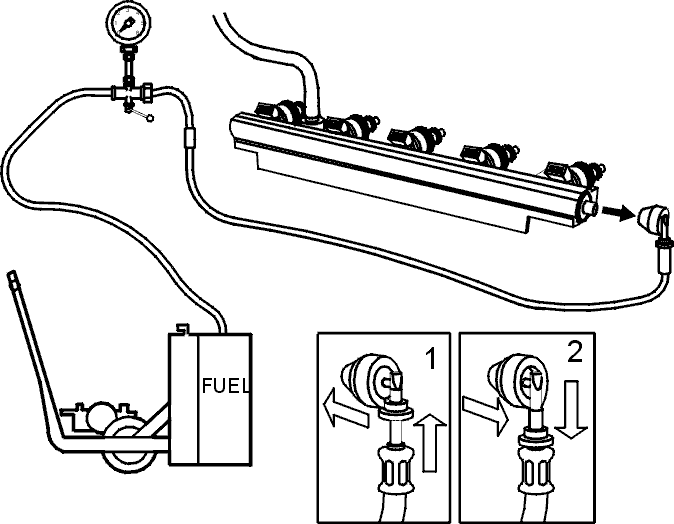

- Lock adapter (refer to "1" valve closed shown in Fig 1).
- Disconnect adapter from valve.
- Stop draining unit.
- Reinstall equipment.
CAUTION:
Remember to reinstall valve safety cap.
