Drainage of fuel system: Connection
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

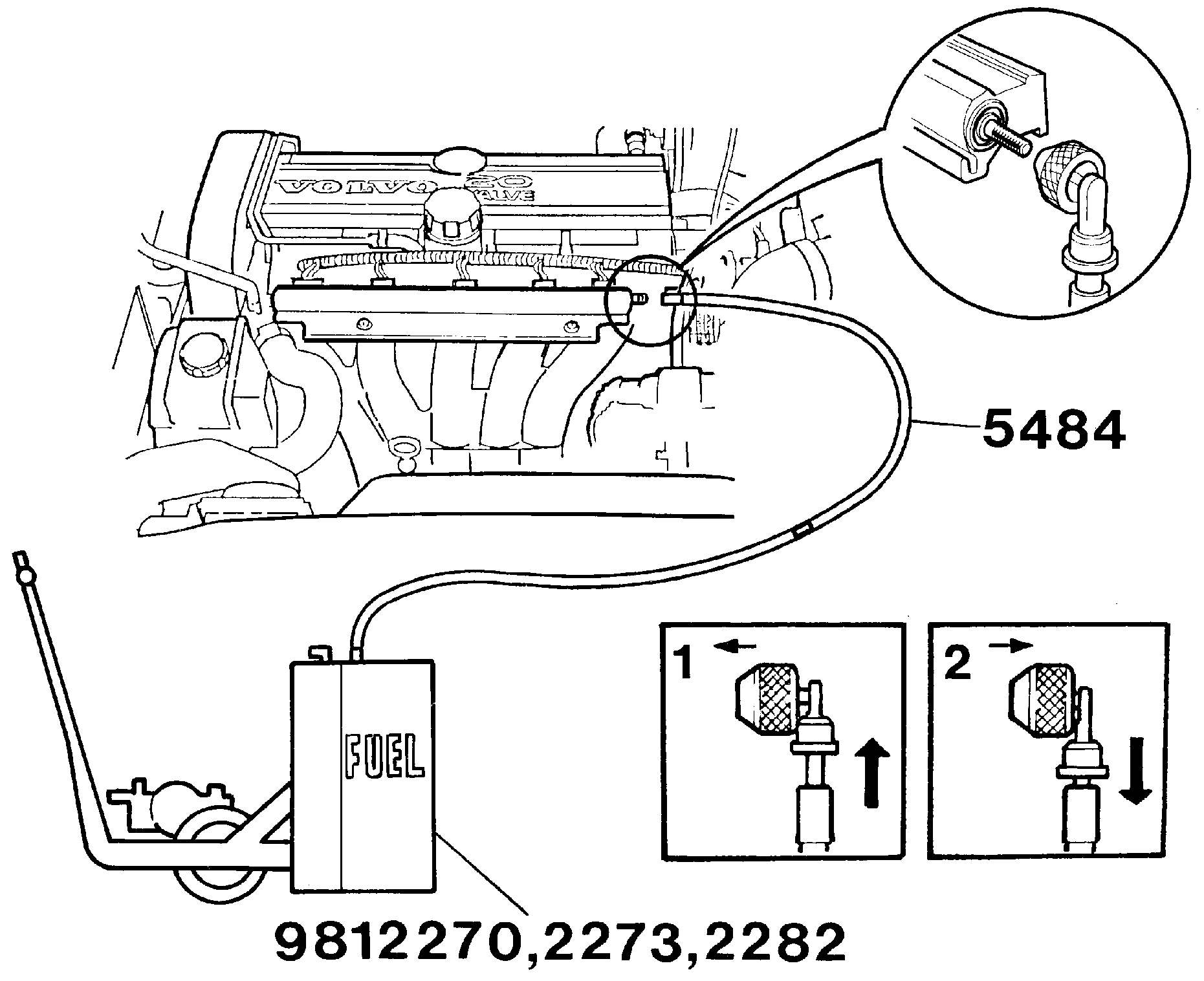

- Connect adapter 999 5484 to fuel drainage unit 981 2270, 2273 and 2282.
- Connect adapter to valve on fuel distribution manifold, with adapter in locked position (shown as "1" valve closed in Fig 1).
- Start fuel drainage unit.
- Unlock adapter (shown as "2" valve closed in Fig 1).
- Jack up car.
