Installing the center bearing and member for the propeller shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

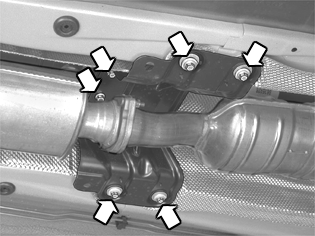

Fig 1: Identifying Center Bearing Support And Propeller Shaft Bearing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install and tighten the 4 x M8 screws for the support for the center bearing.

Install and tighten the 2 x M8 screws for the propeller shaft bearing in the support for the center bearing.
