Install mounting and tensioner

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

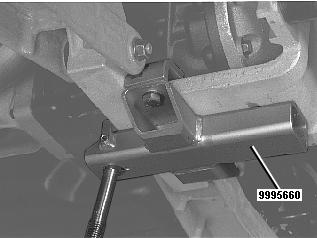

Fig 1: Identifying Special Tool 999 5660

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the long screw in the mounting

Install mounting 9995660 on rear axle member.

NOTE:

Ensure that the tool's mating surfaces with the rear axle member are clean.

Install tensioner 9995659 in the long screw.

Ensure that the rollers are in contact with the control arms on both sides, see Fig 3.

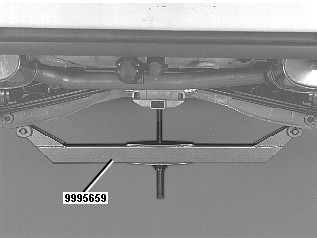

Fig 2: Identifying Special Tool 999 5659

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move control arms to their normal position using the tensioner.

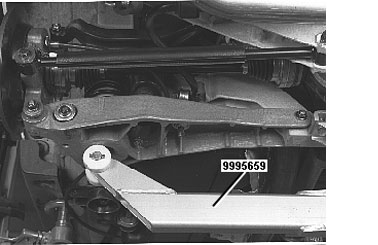

Fig 3: Identifying Special Tool 999 5659

Courtesy of VOLVO CARS OF NORTH AMERICA.
