Primary lock

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

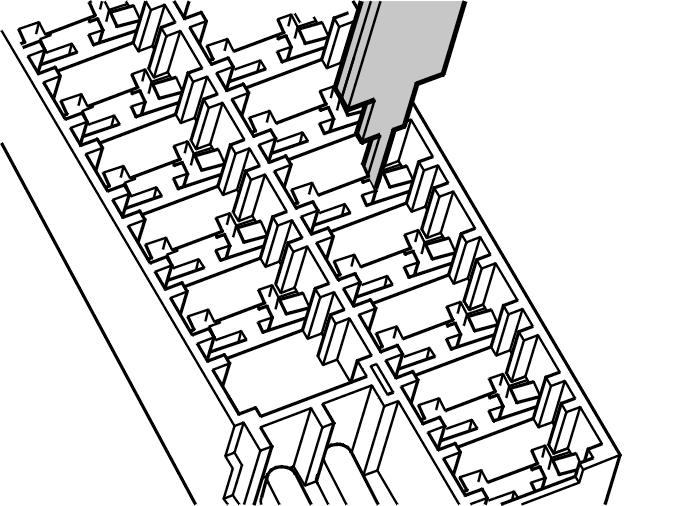

Fig 1: Using Tools 951 2633, 951 2639 To Remove Primary Lock

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Pulling Cable Backwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use tools 9512633 , 9512639 to remove the primary lock.

NOTE:

The relay holders can be connected and several locks may need to be adjusted at the same time.

At the same time pull the cable carefully backwards.

Fig 3: Alternatively Using Tool 951 2852

Courtesy of VOLVO CARS OF NORTH AMERICA.

Alternatively use tool 9512852 .
