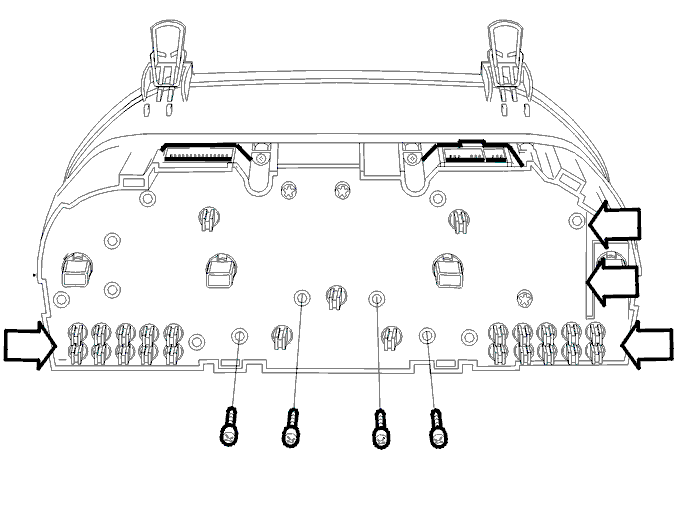

Removing connection plate
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- heat sink according to Replacing heat sink .
- tachometer, temperature gauge, fuel gauge and speedometer according to Replacing tachometer, temperature gauge, fuel gauge and speedometer .
- connection plate screws.
- connection plate, note catches.
