Outside temperature sensor

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

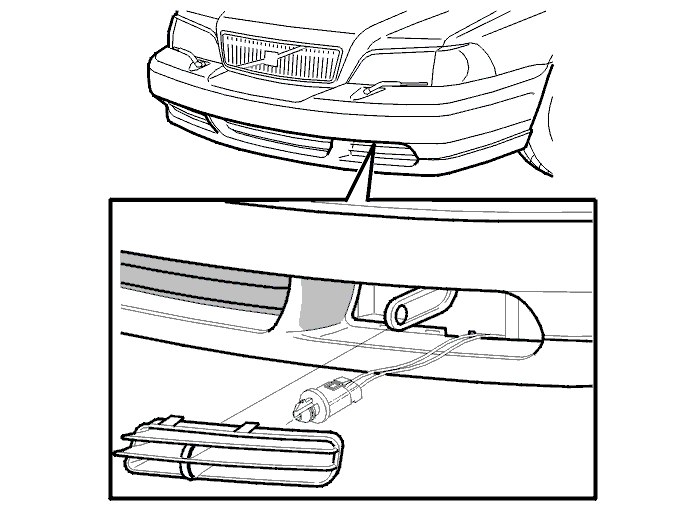

Fig 1: Locating Outside Temperature Sensor
GLL101113Courtesy of VOLVO CARS OF NORTH AMERICA.

The outside temperature sensor is located under the bumper on the left-hand side.

Temperature: °C  Resistance: Ω
0 1424
20 610
40 287
60 146
