Installing Oil Pan Plug

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Reinstall oil pan plug with a new seal.

Tighten to:40 Nm (29.5 lb. ft) .

Reinstall protective cover.

Remove:

Battery
Battery shelf

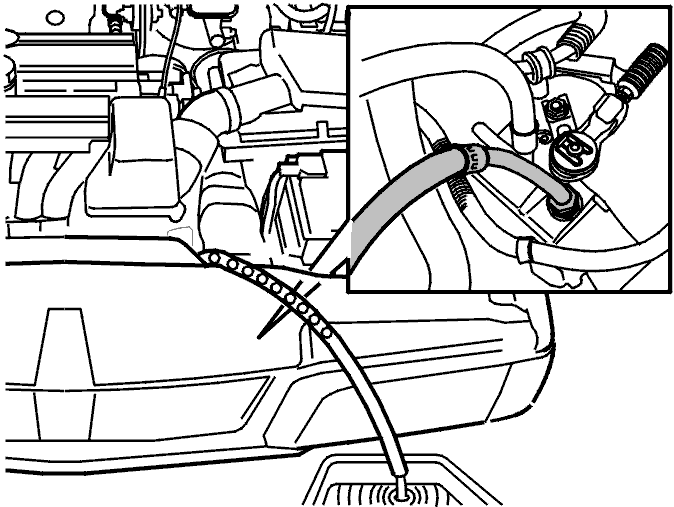

Fig 1: Identifying Return Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove return hose on the control system cover.

Plug the connector on the cover.

Install a transparent plastic hose on the oil return hose connector.

Place a container beneath the hose to catch the oil.

Temporarily replace battery tray and battery.
