Transferring Rear Components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

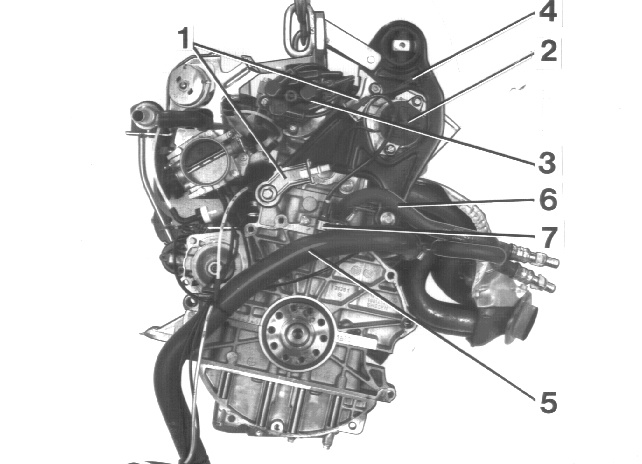

Fig 1: Identifying Rear Components
GLL125737Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Connector brackets
  2. Torque control arm use new screws. Tighten screws in two stages:

    Stage 1, 50 Nm

    Stage 2, 90° angle

  3. Camshaft position (CMP) sensor
  4. Distributor an ignition cables
  5. Radiator hoses
  6. Engine speed (RPM) sensor
  7. Lower radiator hose (with vacuum hoses)
