Transferring Intake Side Components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

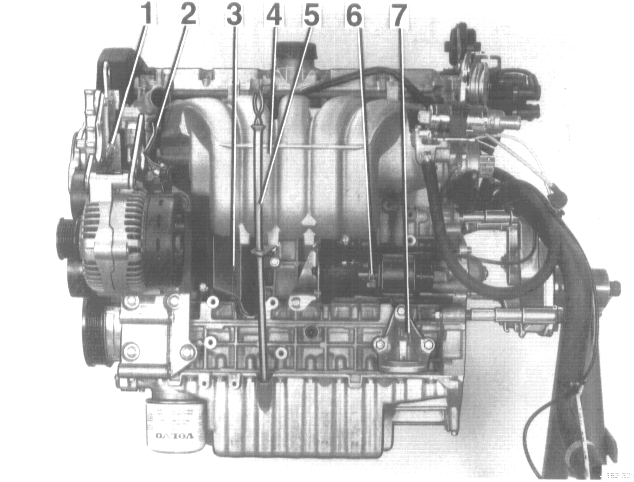

Fig 1: Identifying Intake Side Components
GLL125739Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Auxiliaries bracket with generator (GEN)
  2. Temperature sensor
  3. Intake manifold knock sensors (KS) (torque 20 Nm  )
  4. Flame trap with hose
  5. Dipstick and pipe
  6. Starter motor
  7. Front engine mounting
