Initial Setting And Adjustment
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Turn the ignition key to position 0.
Move the gear shift lever to position P.

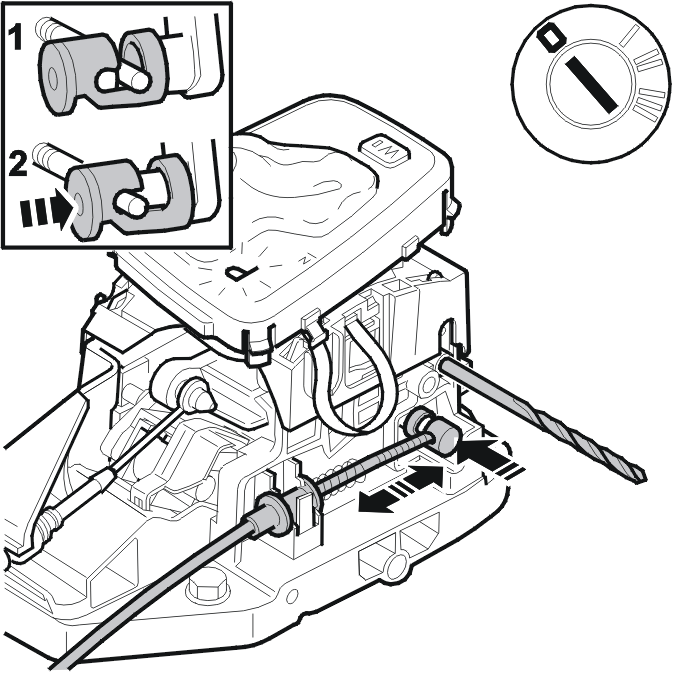

Position a 5 mm drill bit in the housing above the yellow locking sleeve. This is to get the lever into the secured position.
Install a new locking sleeve in position (1) as illustrated.
Install the cable on the housing and on the threaded end in the groove on the yellow locking sleeve.
Press the locking sleeve in to position (2) as illustrated so that it locks the cable.
Check
Check that the key cannot be removed when the gear selector is in any other position than P.
