Install the master cylinder

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

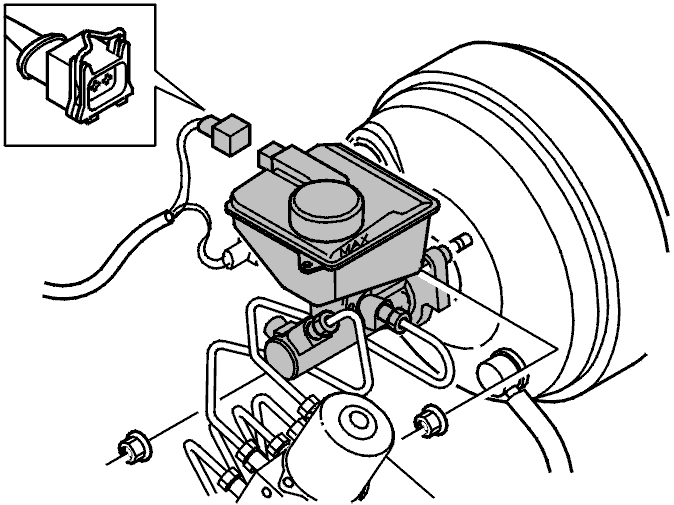

Fig 1: Hose To Clutch Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the mounting nuts. Tighten to 25 Nm .

Connect the connector on the brake fluid reservoir.

Install the nut for the positive cable. Fold back the positive cable. Tighten the nut at the wheel arch. Tighten to 25 Nm .
