Remove the Two Screws For the Splash Guard In the Wheel Arch

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

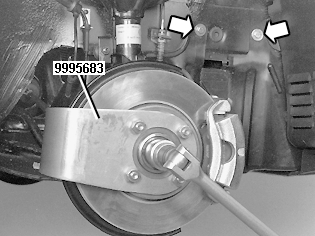

Fig 1: Removing/Installing Drive Shaft Nut, Removing
GLL109773Courtesy of VOLVO CARS OF NORTH AMERICA.

Pry out the splash guard. Tie it up so that there is space for the drive shaft.

Remove the drive shaft nut

Install counterhold on the hub. Remove the nut.
