Install the Front Suspension Components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

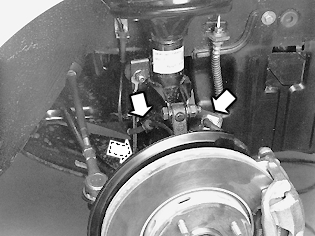

Fig 1: Removing/Installing Brake Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the splash guard in the wheel arch
the brake hose with the retaining clip on the spring strut
ABS sensor and cable on the spring strut and wheel arch. Tighten the sensor. Tighten to 25 Nm .
the wheel. See Installing Wheels .
