Position A Mobile Jack Under the Control Arm
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Position mobile jack under the outer section of the control arm.
Remove the nuts and screws for the stub axle/spring strut.
Turn the stub axle as much as possible for turning to the right.

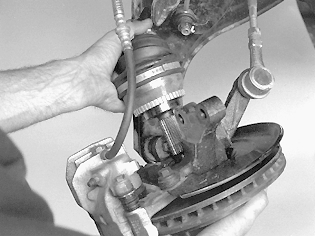

Remove the drive shaft from the hub
HINT: If the drive shaft sticks in the hub, tap it with a copper or rubber mallet.
HINT: If necessary, use a universal puller to press out the drive shaft from the hub.
Hang the stub axle on the spring strut. Use hook .
Remove the counterhold .
