Install the Drive Shaft And Stub Axle

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

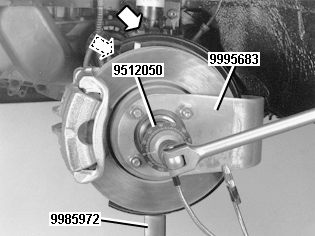

Fig 1: Installing Drive Shaft And Stub Axle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the mobile jack as a support under the control arm.

Align the drive shaft in the hub

Lubricate the shaft splines using grease, P/N 1161246-2.

Install:

the new screws for the stub axle. Use new lock nuts. Tighten to 90 Nm
counterhold
the drive shaft nut. Lubricate the nut before installation. Tighten. See Centre Nut, Drive Shaft And Tightening Torque .
Remove the counterhold.
