Drive Shaft Left, Replacing: Removal: Notes

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Drive Shaft Screw Using A Screwdriver As A Counter Hold On Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Grommet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Tire Pressure Sensor Line And Grommets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measure the position of the wheel spindle/spring strut. See Wheel Knuckle/Spring Strut, Calibrating .

Fig 4: Identifying Strut To Spindle Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Leave the lower screw in place.

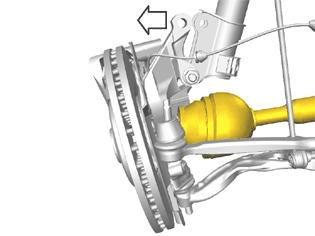

Fig 5: Identifying Drive Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.
