Cleaning And Checking
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

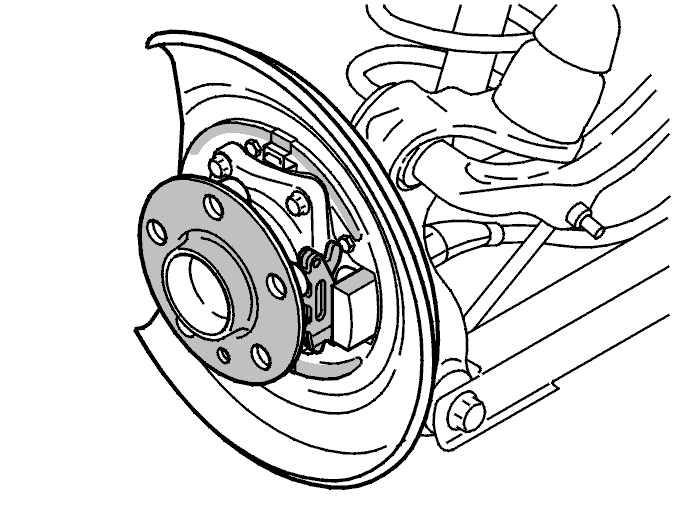

Check that no grease has leaked out of the wheel hub.
Check the handbrake expander for damage. Lubricate if necessary.
Clean the surfaces of the brake drum where the brake shoes make contact.
Check that hub flange is clean. Remove any rust.
Lubricate the contact surfaces on the brake shield. Use heat resistant grease, P/N 1161325-4.
