Seat Removal with SIPS: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

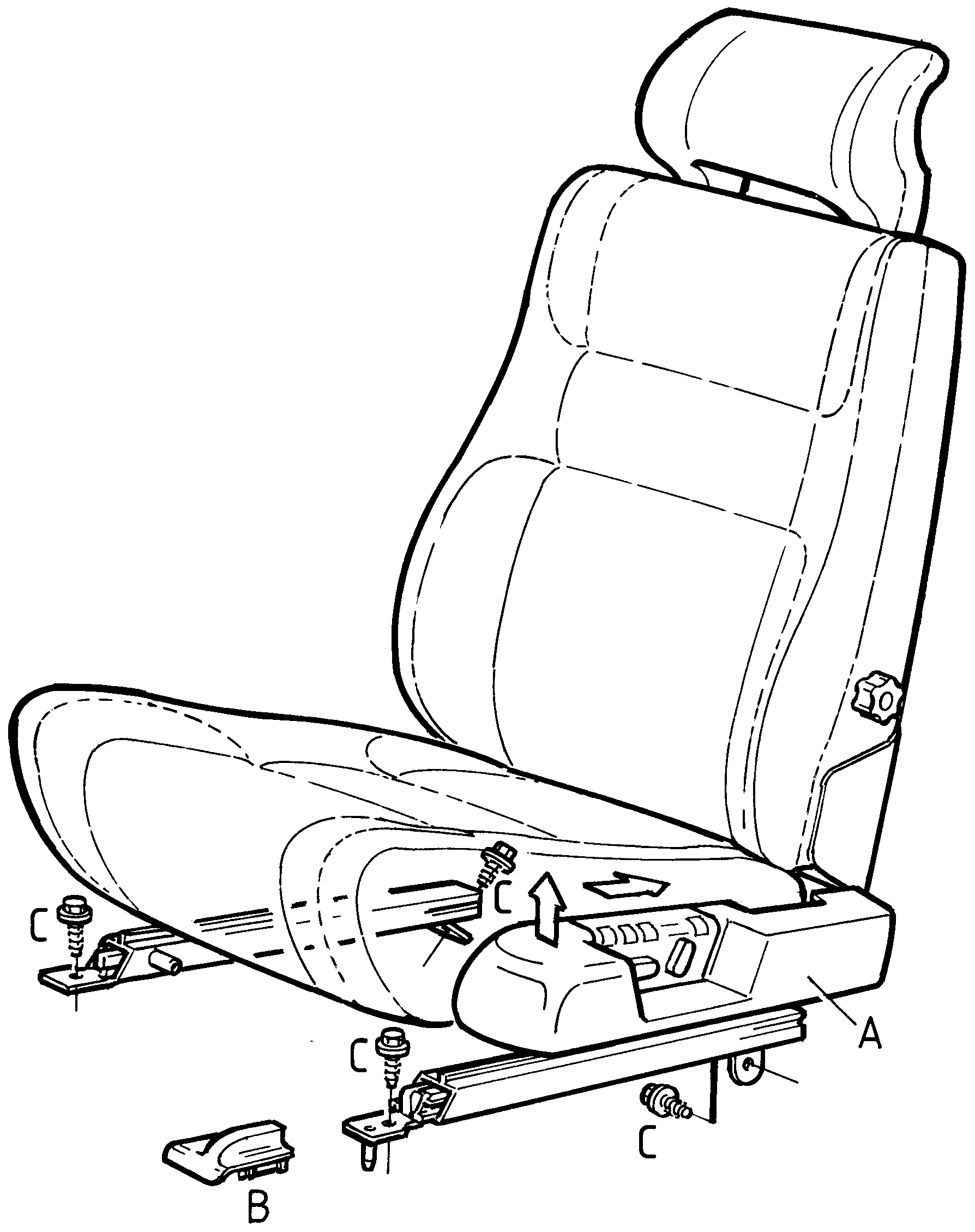

Fig 1: Identifying Side Panel, Seat Rail Panel, And Seat Rail Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The panels (B) over the seat rails.
4 bolts (C) in the seat rails.
The connector to the seat heater pad and control module (under seat).
Lift seat straight up (locating pins at front and rear).
