Fuel Tank Filler Cover Motor, Replacing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

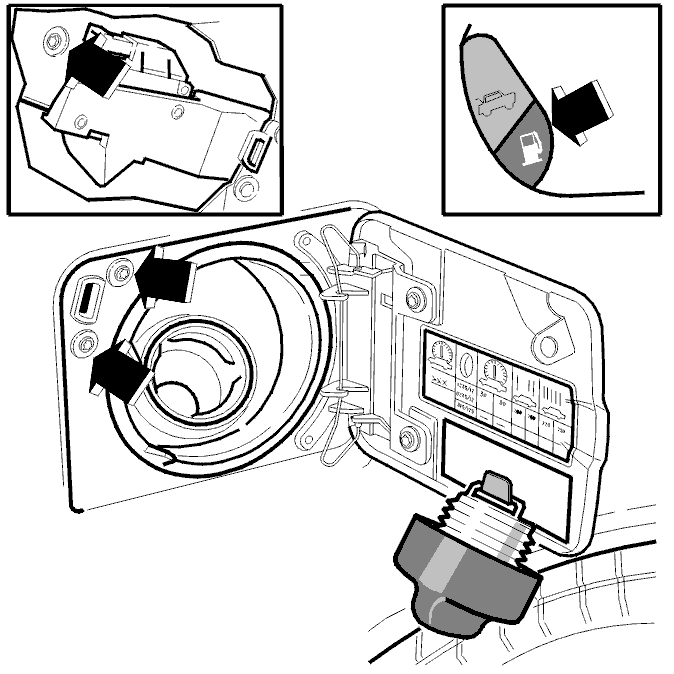

Fig 1: Identifying Fuel Tank Filler Cover, Cover Motor Screws, And Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Applies to both 4-door and 5-door models.

Open the fuel tank filler cap.

Remove the upholstery on the right-hand side of the cargo compartment to access the fuel tank filler cover motor.

Remove the three screws holding the fuel tank filler cover motor. (Two by the fuel tank filler cap and one from inside the car.)

Disconnect the motor from its connector and replace it.

Assemble in reverse order.

Test fuel tank filler cover motor function.
