Burner Unit, Replacing: Removal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

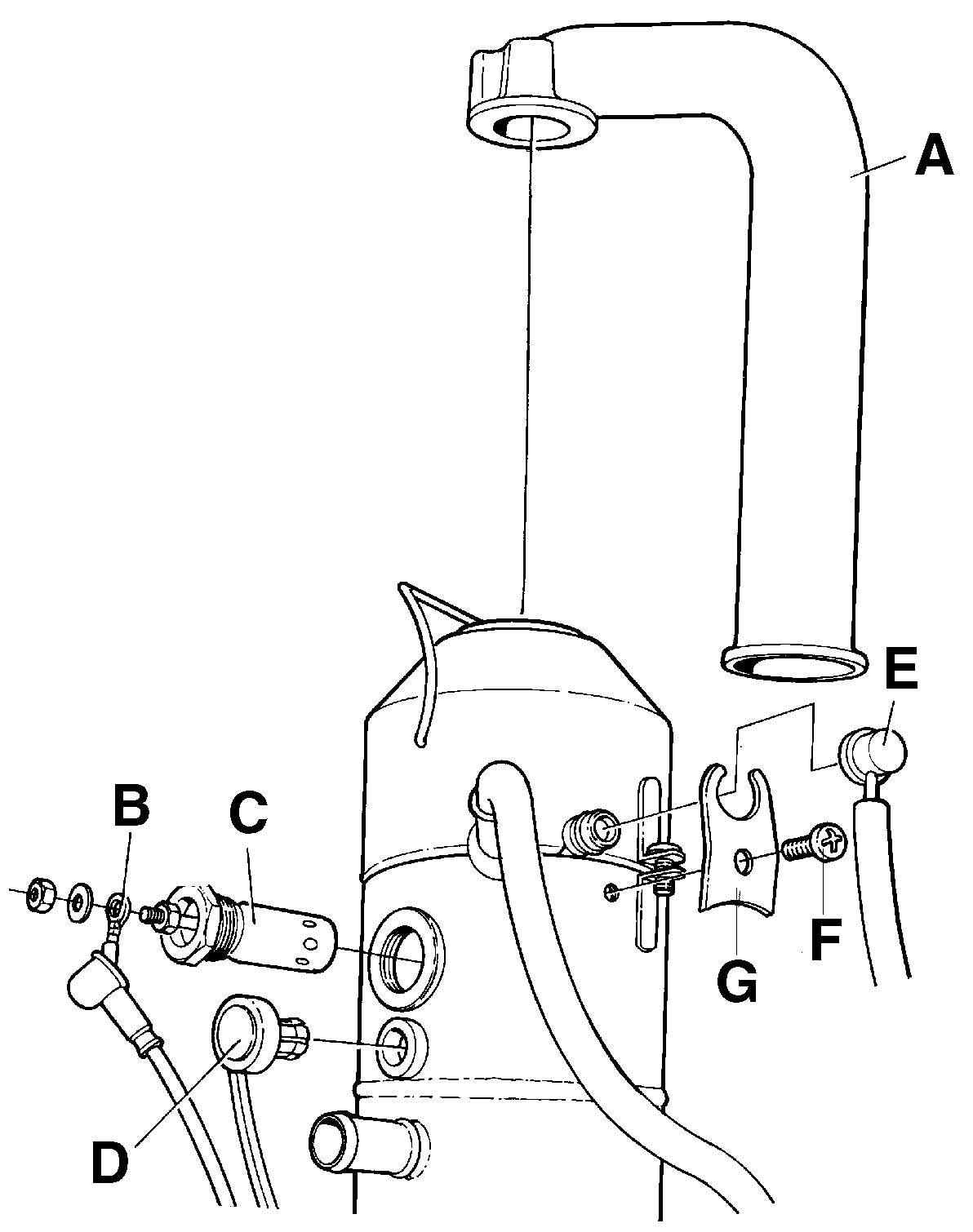

Fig 1: Identifying Burner Unit Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Fan inlet (A)
Socket (B) on glow plug
Glow plug (C)
Flame shield (D).

Fig 2: Identifying Fuel Line, Mounting Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the fuel line (E) by loosening the screws (F) holding the attaching brace (G)
Loosen the two screws (H) attaching the fan shroud and lift off the shroud
Press up the burner unit by carefully pressing a tool through the glow plug hole
NOTE:
Be careful with the glow plug threads.
