Burner Unit Thermostats, Replacing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

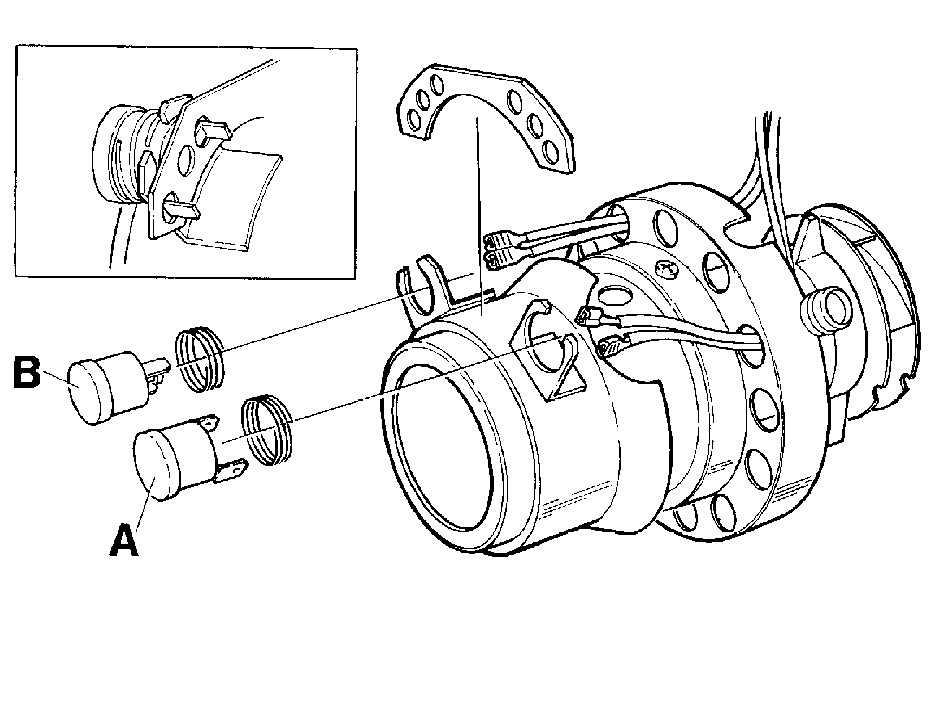

Fig 1: Identifying Operating Thermostat And Overheat Protection Thermostat

Courtesy of VOLVO CARS OF NORTH AMERICA.

To remove the burner unit, see Replacement of burner unit
Loosen the wires and replace the thermostat (A) or (B).

A = Operating thermostat

B = Overheat thermostat
