Removing the Passenger Side Airbag (SRS)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Screw & Nuts For Air Duct
GLL105316Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the air duct.

Ease out the air duct.

Remove the 6 nuts.

Lift out the airbag.

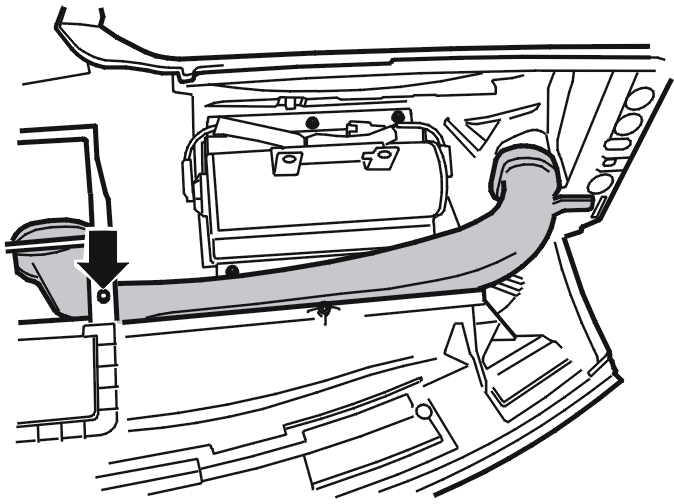

Fig 1: Clip Mounting
GLL107324Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the air duct.

Detach the clip mounting.

Ease out the air duct.

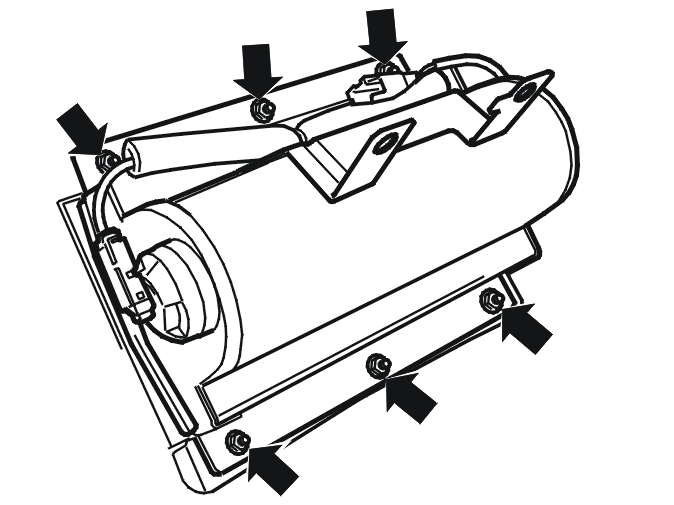

Fig 2: Nuts On Airbag
GLL107625Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 6 nuts.

Lift out the airbag.



Fig 1: Clip Mounting
GLL107324Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the air duct.

Detach the clip mounting.

Ease out the air duct.

Fig 2: Nuts On Airbag
GLL107625Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 6 nuts.

Lift out the airbag.
