Removing driver's airbag (SRS)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Slackening Off Screws From Back Of Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the steering wheel so that there is enough space for tools.

Slacken off the two screws positioned at 45 degrees on the reverse of the steering wheel.

Pull out the airbag to access the connectors.

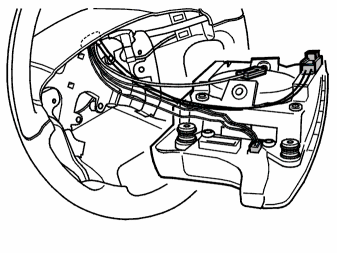

Fig 2: SRS Ignition Cable Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the SRS ignition cable connector. See Igniter Wire Connector
the 2 connectors (there may be more or fewer).

Remove the airbag.

Transfer the keypads/covers. See Keypad Unit, Steering Wheel, Replacing .

Fig 1: Slackening Off Two Screws Positioned At 45 Degrees On Reverse Of Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the steering wheel so that there is enough space for tools.

Slacken off the two screws positioned at 45° on the reverse of the steering wheel.

Pull out the airbag to access the connectors.

Fig 2: Removing SRS Ignition Cable Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the SRS ignition cable connector. See Igniter Wire Connector
the 2 connectors (there may be more or fewer).

Remove the airbag.

Transfer the keypads/covers. See Keypad Unit, Steering Wheel, Replacing .
