Installing Driver's Airbag (SRS)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For airbags (replacement part) supplied without keypads, for Audio, RTI and cruise control for example, an upgrade kit must be ordered.

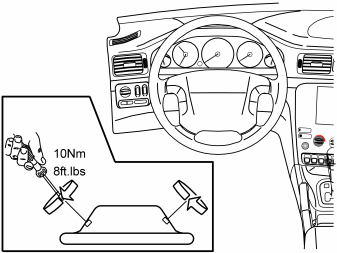

Fig 1: Slackening Off Screws From Back Of Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the connectors
the airbag.

Tighten the screws on the reverse of the steering wheel. Tighten to 10 Nm .

CAUTION: Ensure that no cables are trapped.

NOTE: For airbags (replacement part) supplied without keypads, for Audio, RTI and cruise control for example, an upgrade kit must be ordered.

Fig 1: Slackening Off Two Screws Positioned At 45 Degrees On Reverse Of Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the connectors
the airbag.

Tighten the screws on the reverse of the steering wheel. Tighten to 10 Nm .

CAUTION: Ensure that no cables are trapped.
