Shim Adjustment Of Front Side Window

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

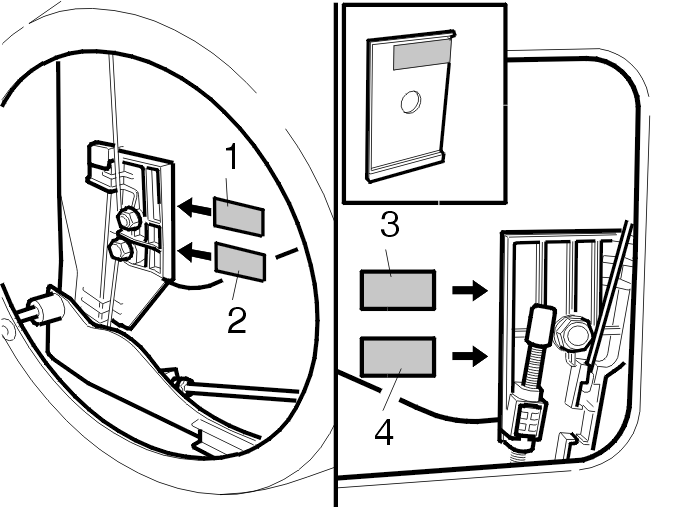

Fig 1: Adjusting Front Side Window Shims

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the glass clamp screws for the carriages using the Torx grip.

NOTE:

The new glass clamp screws are slackened off by turning clockwise.

To reduce the pressure at the front edge of the side window (1), shim the front carriage over the glass clamp screw.

To increase the pressure at the front edge of the side window (2), shim the front carriage under the glass clamp screw.

To reduce the pressure at the rear edge of the side window (3), shim the rear carriage over the glass clamp screw.

To increase the pressure at the front edge of the side window (4), shim the rear carriage under the glass clamp screw.

Tighten the screws. Tighten to 9 Nm.

NOTE:

The new glass clamp screws are tightened by turning counter-clockwise.

CAUTION:

Ensure that the clearance of 1 mm between the lift mechanism and the carriage is maintained.

Close the door and check that the window applies even pressure against the weatherstrip.
