Adjusting Side Window

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

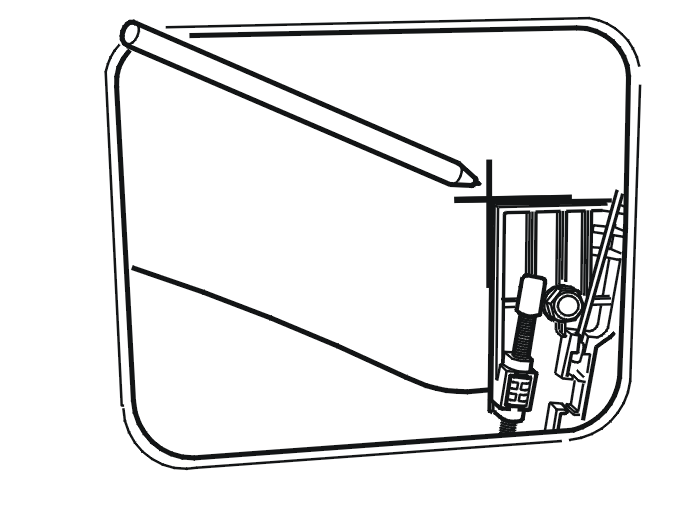

Fig 1: Adjusting Side Window (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the window lift mechanism fully.

Close the door carefully.

Ensure that the rear side windows are in the highest position.

Check the position of the front side window against the weatherstrip and the distance to the rear side window. Note any discrepancies.

Lower the window lift mechanism fully.

Mark out the position of the front side window in the carriages.

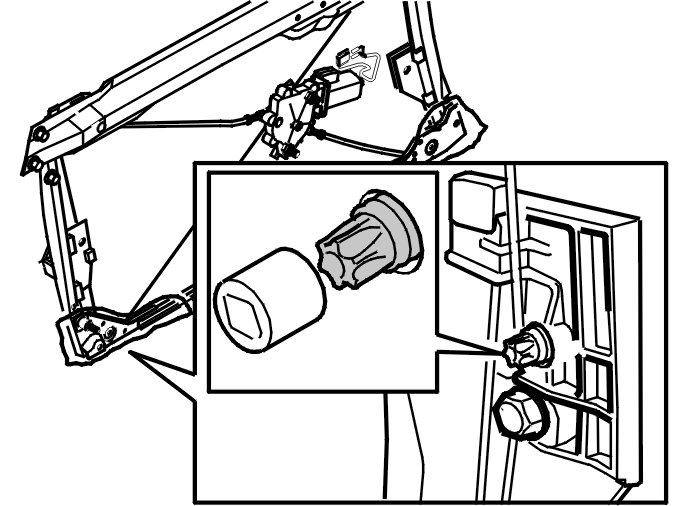

Fig 2: Adjusting Side Window (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the window lift mechanism 10 cm.

Slacken off the screws using the Torx grip. Slacken off only so much that the window can be adjusted.

NOTE:

Turn clockwise to slacken off the screws.

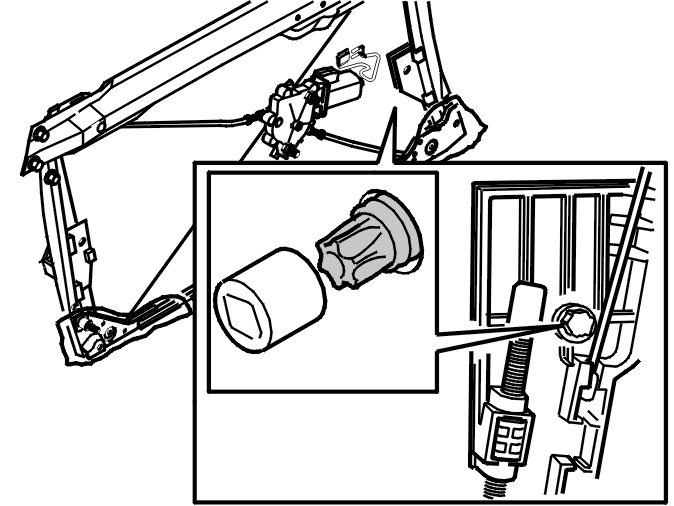

Fig 3: Adjusting Side Window (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust the window according to the marking made when checking the deviating position of the window.

Tighten the screws. Tighten to 9 Nm.

NOTE:

Turn counter-clockwise to tighten the screws.

CAUTION:

Ensure that the clearance of 1 mm between the lift mechanism and the carriage is maintained.

Raise the window lift mechanism fully.

Close the door carefully.

Check the position of the window.

Repeat the adjustment if the position is incorrect.
