Adjusting The Rear Side Window Vertically

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

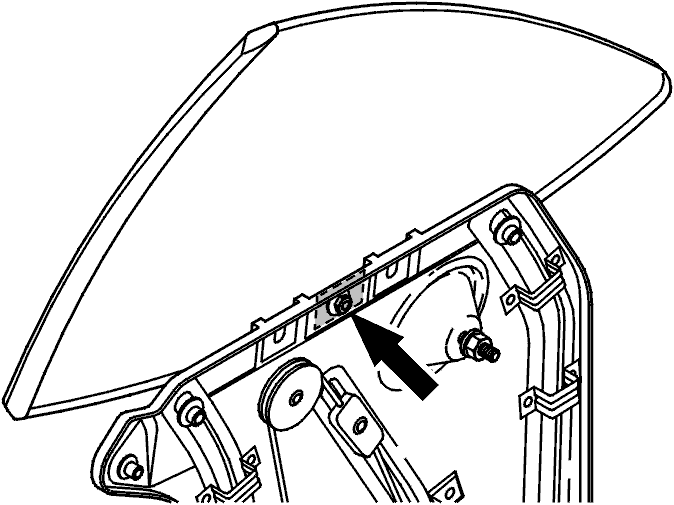

Fig 1: Identifying Rear Side Window Stop Lug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust the rear side window by moving the stop lug up or down, as illustrated.

Check for leaks between the rear side window and the weatherstrip.

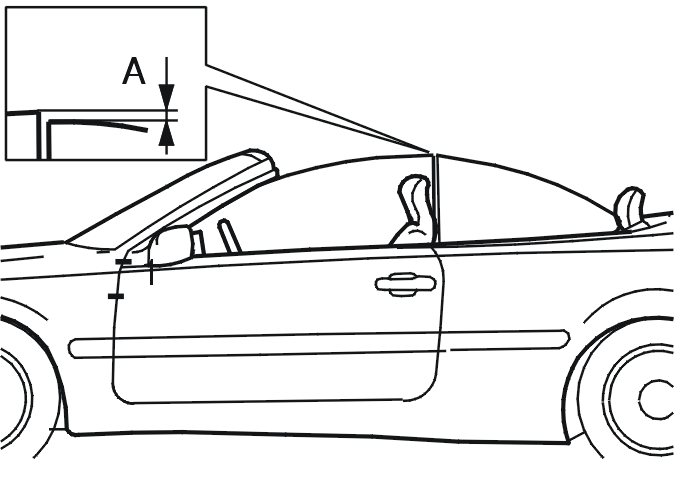

Fig 2: Identifying Difference In Height Between Front And Rear Side Windows

Courtesy of VOLVO CARS OF NORTH AMERICA.

The difference in height (A) between the front and the rear side windows must be 1 mm.
