Adjusting The Rear Side Window Longitudinally

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Screws For Window In Power Window Lift Mechanism Cassette

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the door panel.

Note that there is some leeway when adjusting the mounting for the window to the power window lift mechanism cassette.

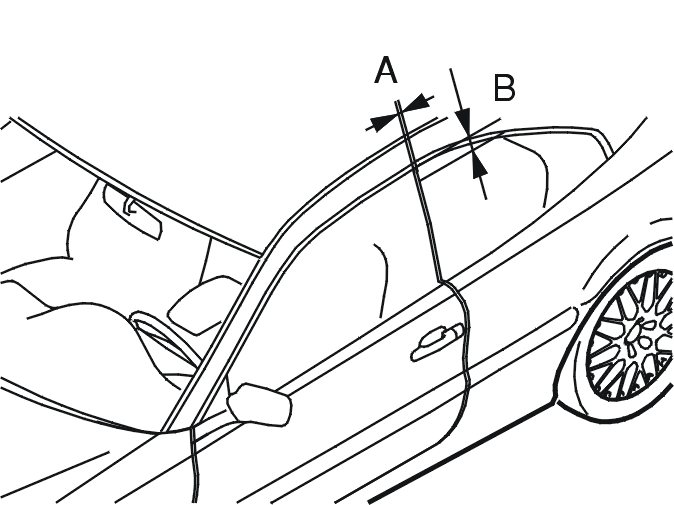

Fig 2: Identifying Clearance Between Front And Rear Side Windows

Courtesy of VOLVO CARS OF NORTH AMERICA.

The longitudinal clearance (A) between the rear and the front side windows must be 20 - 23 mm.

The parallel alignment must be 2 mm, measured between 2 points at the upper and lower edges.
