Adjusting The Rear Side Window Laterally

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

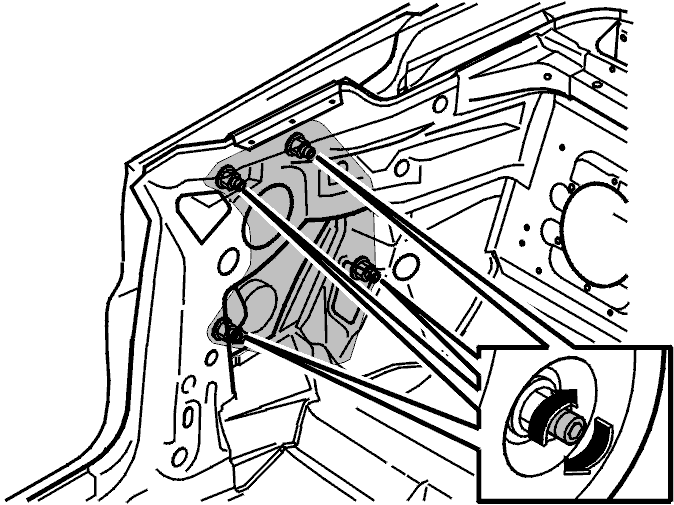

Fig 1: Identifying Rear Side Panel And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the distance between the window and the body flange is 7.5 - 8.5 mm when the weatherstrip is removed.

Then adjust the window so that it lies the same way along the entire weatherstrip for the B-post.

Check for leaks between the front and the rear side windows. Adjust the front side window at the upper cassette mounting.

Check that the difference in height between the front and the rear side windows is a maximum of 1 mm.

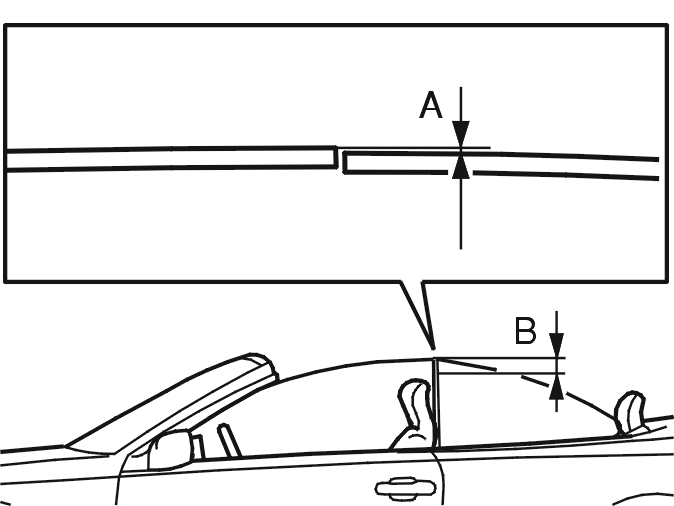

Fig 2: Identifying Lateral Measurement Between Front/Rear Window Weatherstrip And 50 mm Downward Measurement From Upper Edge Of Rear Window

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the lateral measurement (A) between the weatherstrip for the rear side window and the front side window, as illustrated. To obtain the measurement (A), measure 50 mm down from the upper edge of the rear side window (B). The measurement (A) must be at most 1.5 mm.

Move the windows up and down at the same time. Check that the windows do not catch. Shearing must not occur.

If necessary, adjust the tilt of the rear side window using the lower adjustment screws on the cassette.
