Windshield wiper arms
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Press the wiper arm into place on the shaft journal
- Screw the nut into place loosely

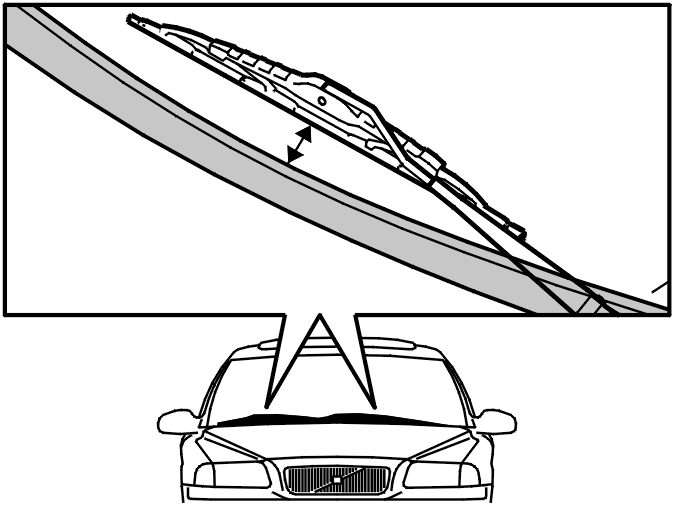

- Adjust the wiper arm to the correct position. See the illustration.
Driver's side
The distance from the center of the wiper blade to the upper edge of the trim strip must be 75 mm.
Passenger side
The distance from the center of the wiper blade to the upper edge of the trim strip must be 90 mm.
- Tighten the nut. Tighten to 20 Nm
- Install the protective cover over the nut.
NOTE:
Remove the masking tape from the wiper arms and the edge of the hood.
