Wheel Sensor, Front, Replacing: Removal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Switch Off The Ignition. Remove The Wheel And Wheel Sensor

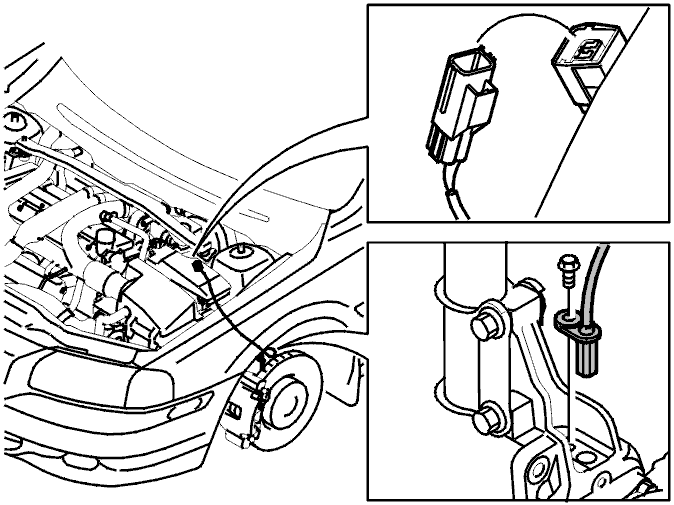

Fig 1: Electrical Cables From Brackets

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Blow clean around the sensor using compressed air before removing.

Remove the sensor mounting screw. Pull out the sensor.

Remove the electrical cables from the brackets.

Remove the clips from the electrical cables.

Separate the connector. Remove the sensor.
