Lowering subframe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

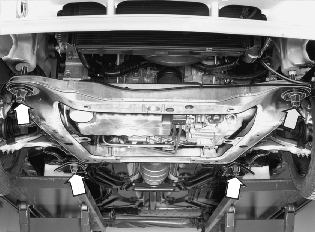

Fig 1: Identifying Subframe Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Start by lowering front end of frame to half the tool bolt length.
Now repeat at the rear end of frame.
Now lower to full length of tool as per procedure above.

In cars with turbo:

Check while lowering that turbocharger air pipe does not get caught in radiator by lower intercooler connection.

NOTE: It is important to lower the frame in the right order, otherwise the steering wheel column joint will get caught in the body opening.
