Installing New Power Brake Booster

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

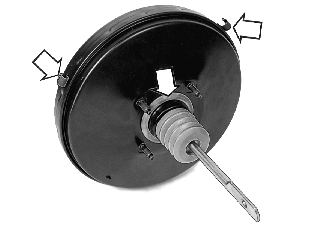

Fig 1: Identifying Power Brake Booster, Pipe Mountings/Clip, And Seal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer pipe mountings/clip and seal to new power brake booster. Replace seal if necessary.

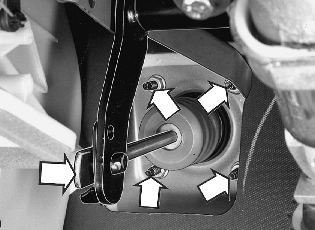

Fig 2: Identifying Power Brake Booster Pushrod, Locking Clip, And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install power brake booster. Connect pushrod to brake pedal. Install locking clip.
Install the four nuts. Tighten to 25 Nm (18 ft. lb).
