Installation tools
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

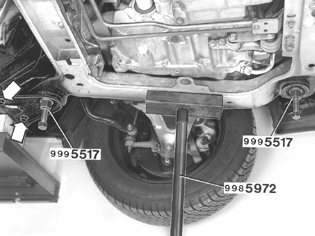

- Install tools on subframe. Start on LH side.
9995517 (blank) (2 for LH side) and 9995518 (yellow) (2 for RH side).
- Position jack 9985972 under LH side of frame.
- Remove front of frame and rear bolt
- Install tool 9995517 , ensuring the front is fitted with the bolt washer. Tighten tool as far as it will go. Then tighten tool nut.
- Remove support bracket bolts.
- Move jack to RH side and repeat procedure as above.
