Finishing Work On Raised Car
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Install:
- protective cover under engine (some models only).
- bolt to negative lead clip on frame member.
- cable pipe to subframe.
In cars with turbo:
- Install turbocharger air pipe on hose connection at lower intercooler connection.
Install:

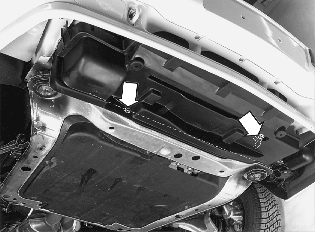

- front protective cover. Press cover into position on frame edge. Push it forwards and press up at the back so cover guide fits into its track.
- Install bolts.
