Master Cylinder, Replacement: Installing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

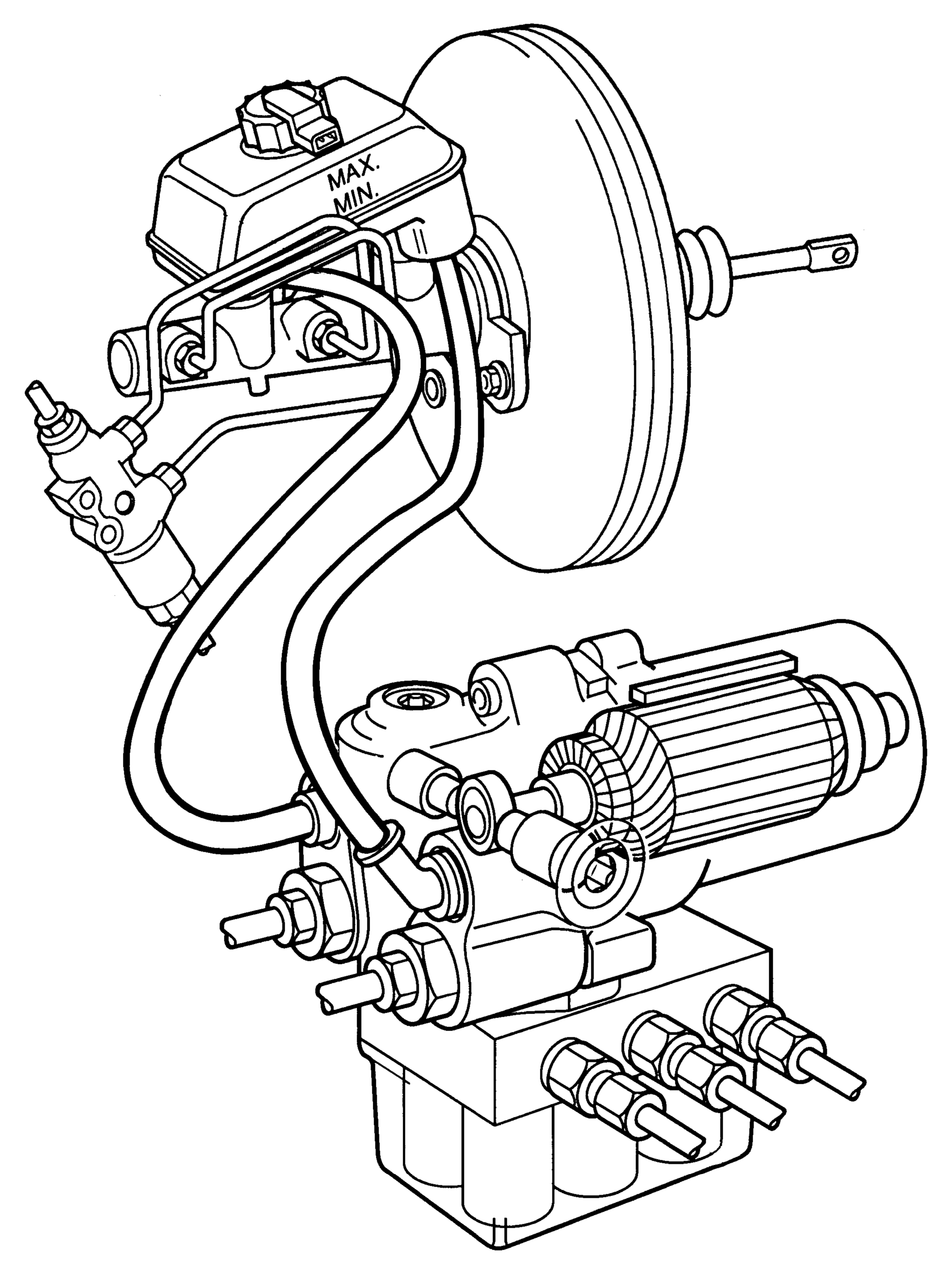

Fig 1: Identifying Brake Pump And Master Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

complete master cylinder with brake fluid reservoir and tighten nuts.
brake pipe, but do not tighten.

NOTE: Do not use soap solution for lubricating hoses. Use brake fluid or glycerine.

Install:
hoses on brake fluid reservoir.
connector on brake fluid level sensor.
battery negative lead.

Fig 2: Identifying Master Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fill brake fluid reservoir completely.
Tighten pipe nipples to 14 Nm (10 ft. lb) if it seems brake fluid is escaping.
Bleed braking system as per Bleeding Brakes . Then continue as per instructions below.
Bleed clutch in manual models.
