Removing Hydraulic Unit

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

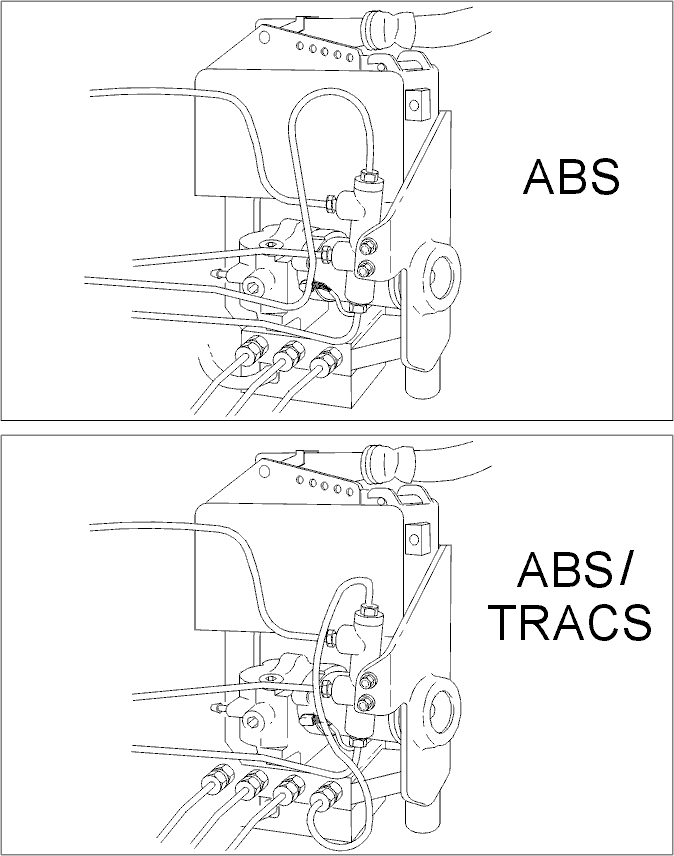

Fig 1: Identifying Hydraulic Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut tie band and remove coiled lead from bracket.
Remove the two brake pipes to the reducing valve.
Remove the four mounting bolts from the hydraulic unit.
Remove hydraulic unit.

NOTE: Hydraulic unit must be replaced as a complete unit. Never open hydraulic unit under any circumstances. Reassembling it calls for special equipment and facilities.
