Installing Bracket

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Install bracket carefully in car.
Install the two brake hoses from the brake fluid reservoir.

NOTE: Use only glycerine for greasing hoses.

Lift shock absorber turret mounting over nut on hydraulic unit bracket.
Tighten the two nuts on shock absorber turret.
Install and tighten nut at top of hydraulic unit bracket.

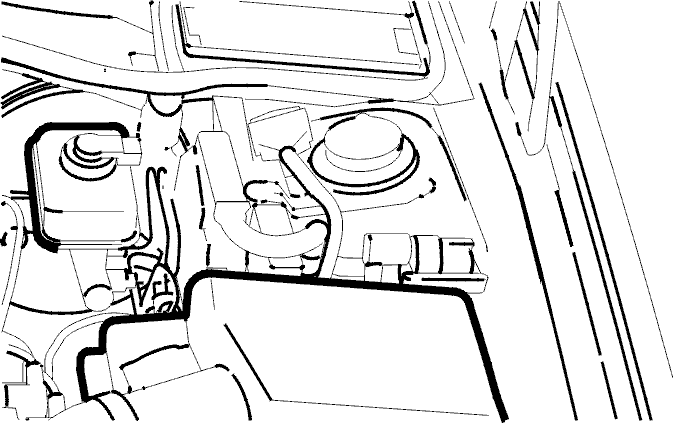

Fig 1: View Of 15-Pin Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install combination relay connector and attach to bracket.
Install connector to motor leads and attach up on shock absorber turret with the two bolts.
Install the three brake pipes (four brake pipes in cars with TRACS) in their respective connections on the side of the hydraulic unit.
Install the two brake pipes on master cylinder.
Tighten to 14 Nm (10 ft. lb).

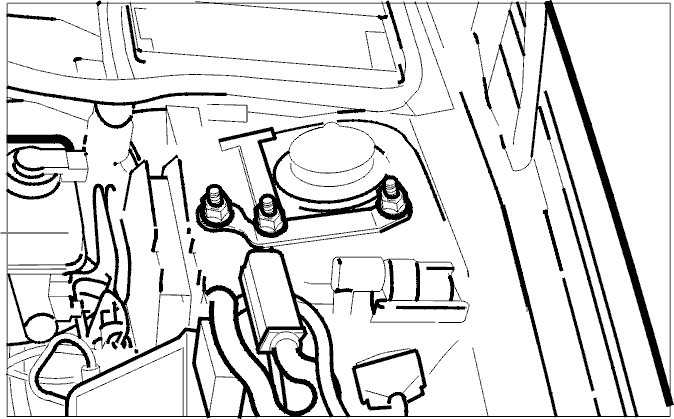

Fig 2: View Of Brake Hose And Brake Pipe Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install control module connector.
Install air filter casing.

Turbo models:

Install inlet pipe between air filter casing and turbocharger.
