Installation Of Brake Caliper And Brake Pads
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Push piston back in cylinder on brake caliper.
- Check that dirt guard is positioned correctly.

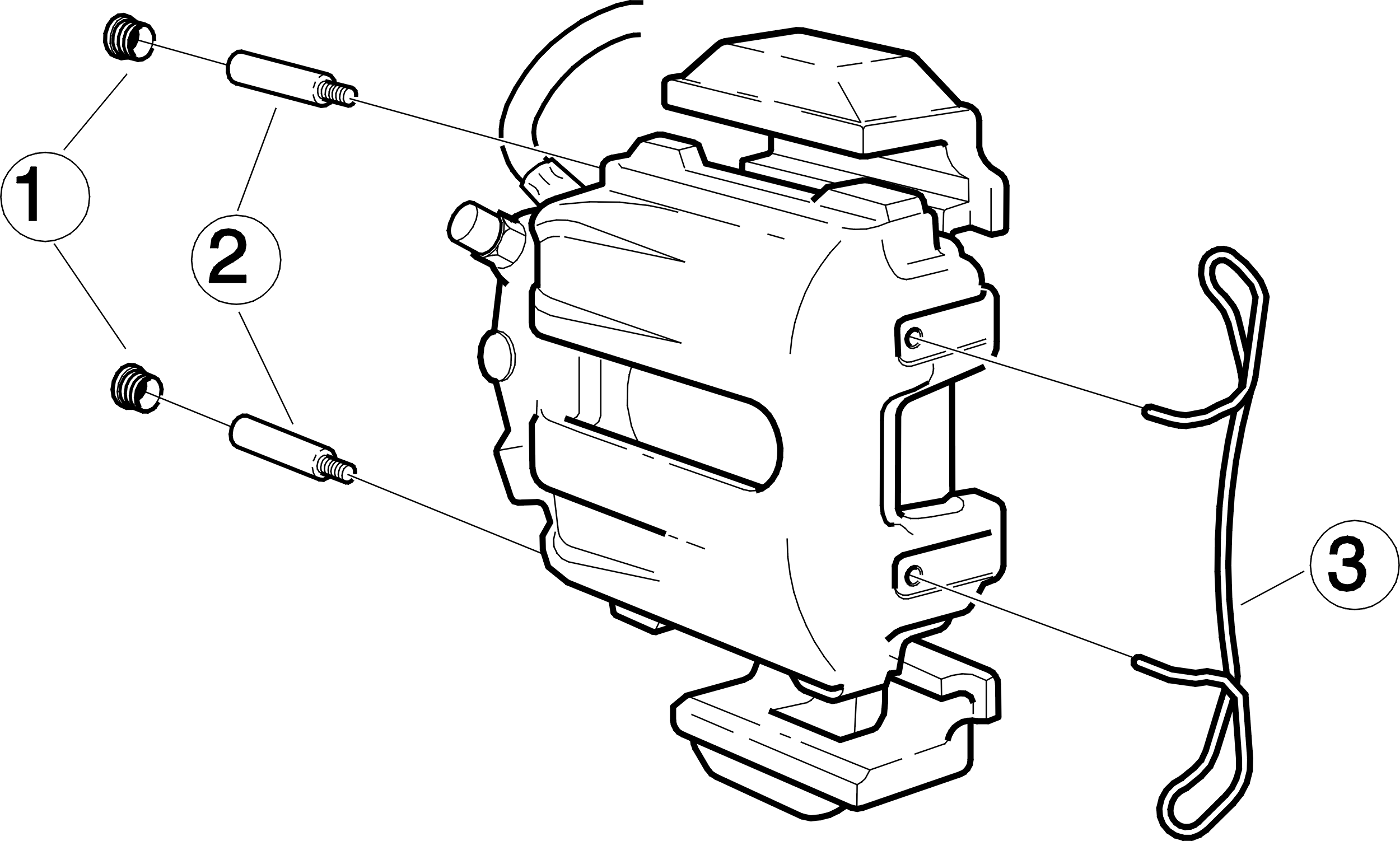

- Install new brake pads and install brake caliper.
- Tighten locating pins to 30 Nm (22 ft. lb) and install protective caps.
- Install retaining spring (3).
