Remove the brake pipe from its clips

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

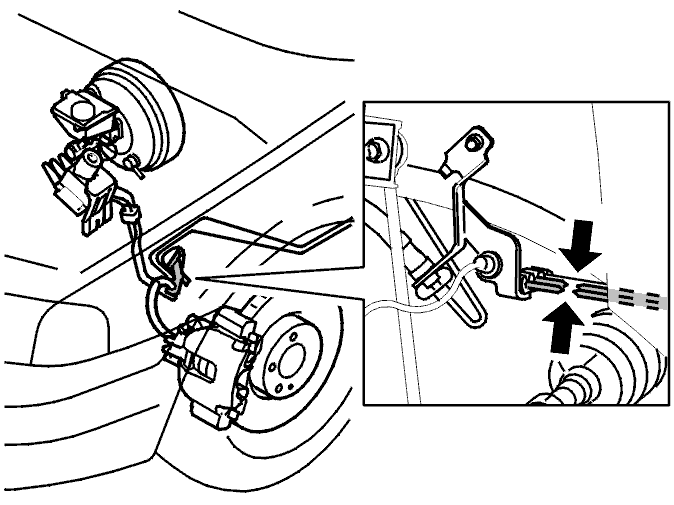

Fig 1: Removing Brake Pipe From Clips
GLL104523Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car

Remove the left front wheel.

Remove the screw from the bracket for the brake pipe and brake hose.

Remove the holder from the brake pipes.

Clean the brake pipe and joint nipple.

Separate the brake pipe at the joint nipple. Counterhold the joint nipple.

Remove the brake pipe from its clips.

Cut the brake pipe at the bracket. Leave the pipe that has been cut in place as a guide for installation of the new brake pipe.
