Remove the brake pipe from its clips by the side member

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

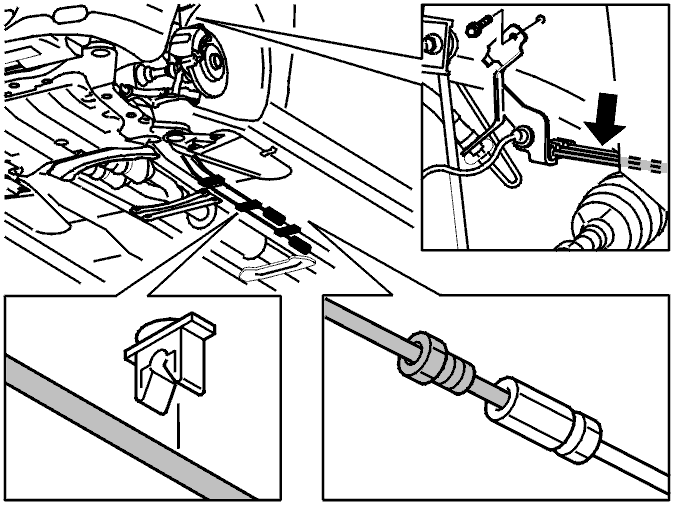

Fig 1: Brake Pipe Removal Procedure

Courtesy of VOLVO CARS OF NORTH AMERICA.

Straighten the brake pipe by the ABS hydraulic modulator.

NOTE: The new brake pipe must be bent into the correct shape when installing. This is important otherwise the pipe may be subject to stresses when it is in place.
