Bleeding Brakes (Procedure 1): Conditions

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

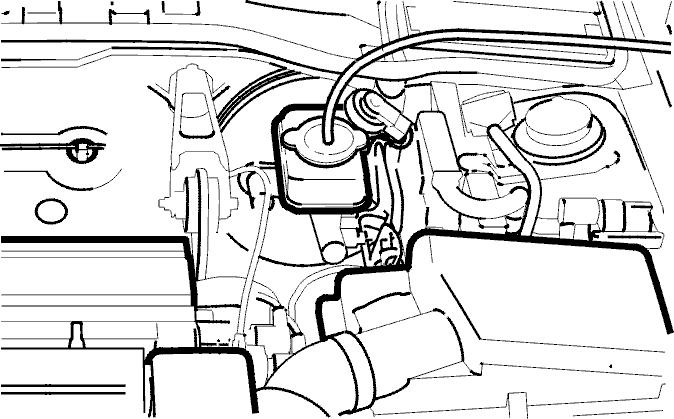

Fig 1: Bleeding Brakes

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Bleeding the braking system with ABS takes longer than bleeding a conventional braking system.

Bleeding guidelines

When overhauling or replacing the brake caliper, mechanical bleeding in the usual way will normally be enough; but the brake pedal must be kept held down during the procedure, so braking system is not drained of brake fluid. If the braking system has been completely or partly drained, use the bleeding unit.

For other bleeding and when replacing brake fluid, use equipment which pressurizes braking system to 2-3 bar (34-43 psi).

Brake fluid

Use only genuine Volvo brake fluid marked DOT 4+. Never reuse brake fluid. Always keep brake fluid in original pack and well sealed.
