Removing the throttle body

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

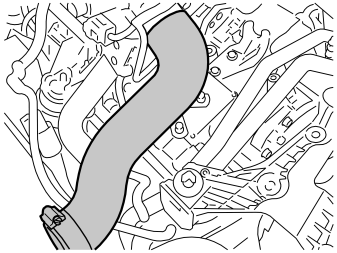

Fig 1: Identifying Throttle Body Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the hose from the throttle body.

Undo the hose clip and move the hose aside.

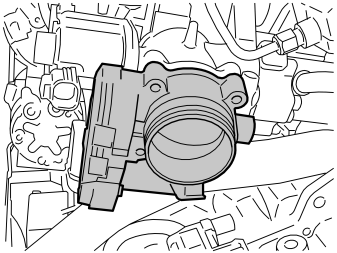

Fig 2: Identifying Throttle Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 4 M6 screws of the throttle body.

Scrap the gasket.
