Removing the Air Cleaner (ACL)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

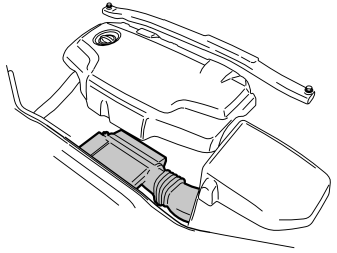

Fig 1: Identifying Intake Hose Between Front Plate And Air Cleaner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the intake hose between the front plate and the air cleaner.

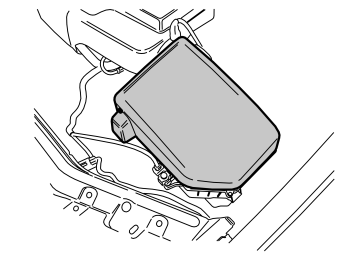

Fig 2: Identifying Engine Control Module (ECM) Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover over the Engine Control Module (ECM) and pull it straight up.

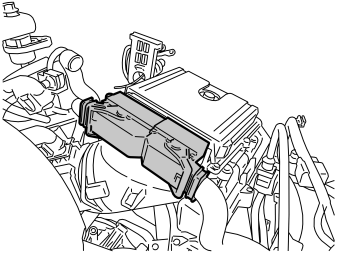

Fig 3: Identifying Engine Control Module (ECM) Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Do not touch the control module terminal pins with your fingers. Static electricity may damage components in the control module.

Unplug the connector from the Engine Control Module (ECM). Press in the catch and move the lock brace up.

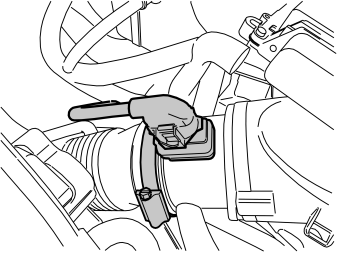

Fig 4: Identifying Mass Air Flow Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unplug the connector from the mass air flow sensor. Detach the hose clip from the mass air flow sensor.

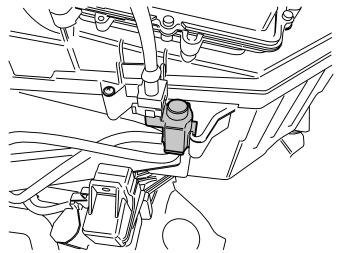

Fig 5: Identifying Solenoid Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the solenoid valve from the air cleaner housing

Lift up the air cleaner and move aside the fresh air hose.
