Exposing the sub-frame

Fig 1: Identifying Cable Duct Screw And Ground Lead Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw for the cable duct
• the screw for the ground lead.

Fig 2: Front Engine Pad Lower Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the front engine pad.

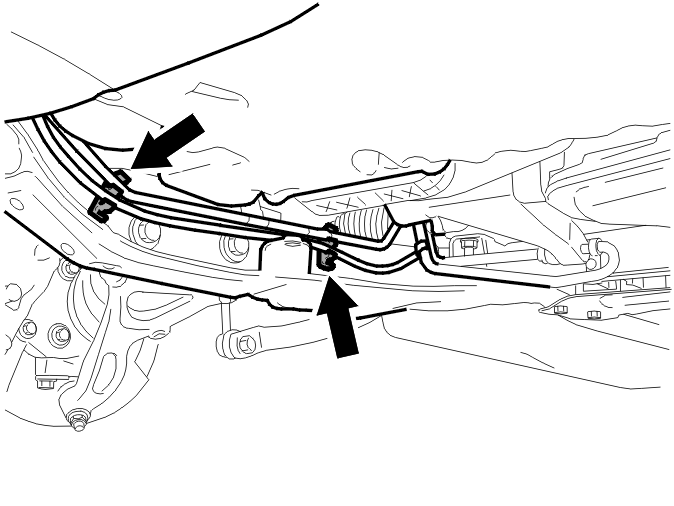

Fig 3: Identifying Oil Pipe For Steering Gear, Screw Clip For Steering Gear Return Line And Fuel Line For Engine Block Heater

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the oil pipe for the steering gear from the snap fasteners along the sub-frame
• the screw clip for the steering gear return line
• the fuel line for the engine block heater, if applicable.

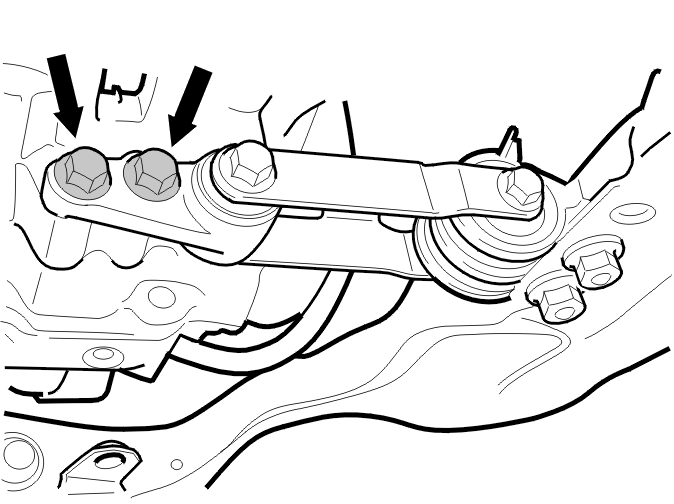

Fig 4: Identifying Gearbox Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws holding the torque rod at the transmission.

Fig 5: Identifying Anti-Roll Bar Links

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the anti-roll bar links from the anti-roll bar on both sides. Counterhold using a Torx wrench so that the ball joint boot is not damaged.
