Assembling The Spray
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Assemble spray while engine is warming up

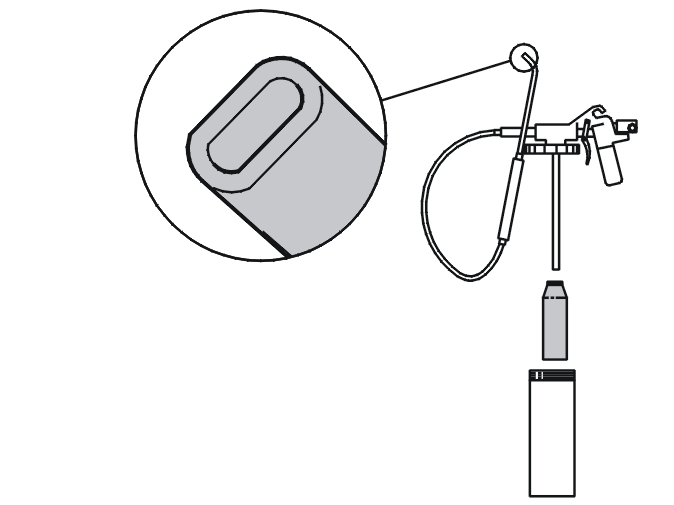

- Fit flat nozzle to Volvo rust inhibitor spray and clean nozzle.
- Shake bottle containing Odor treatment air conditioning (A/C) well, and put the bottle in the spray holder.
- Insert spray riser pipe in container and screw spray onto holder.
- Set spray to green mark.
- Connect spray to compressed air.
WARNING:
Do not tilt the spray excessively. Tilting spray excessively may cause liquid to escape from container.
WARNING:
If liquid escapes from the container empty it back in and complete the operation.
